690V gidaarka derbiga ah ee vart
Ma waxaad raadinaysaa 690V derbiga derbiga ah ee lagu kalsoonaan karo Guusa waxay ku siisaa xalka wax-waxyeedka sare leh tikniyoolajiyadda horumarsan ee tayada korontada xasilloon. Waxaa loogu talagalay cimri dhererka iyo waxqabadka ugu habboon, qalabkani wuxuu yareynayaa kharashaadka wuxuuna wanaajiyaa hufnaanta hawlgalka. Weydiiso xigashadaada hadda oo soo ogaato sida badeecadaheena ay kor ugu qaadi karto meheraddaada!

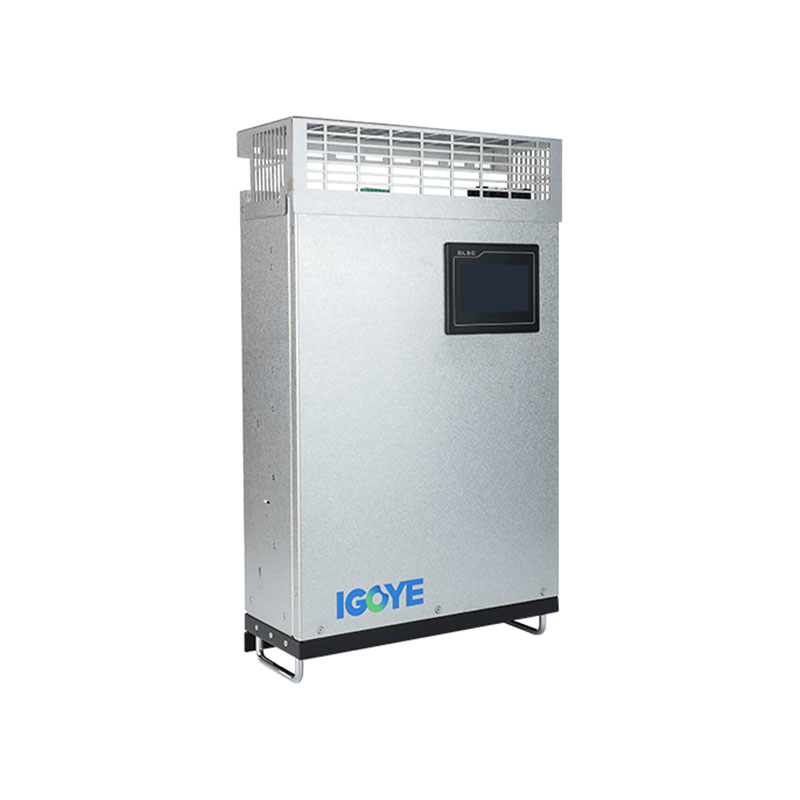

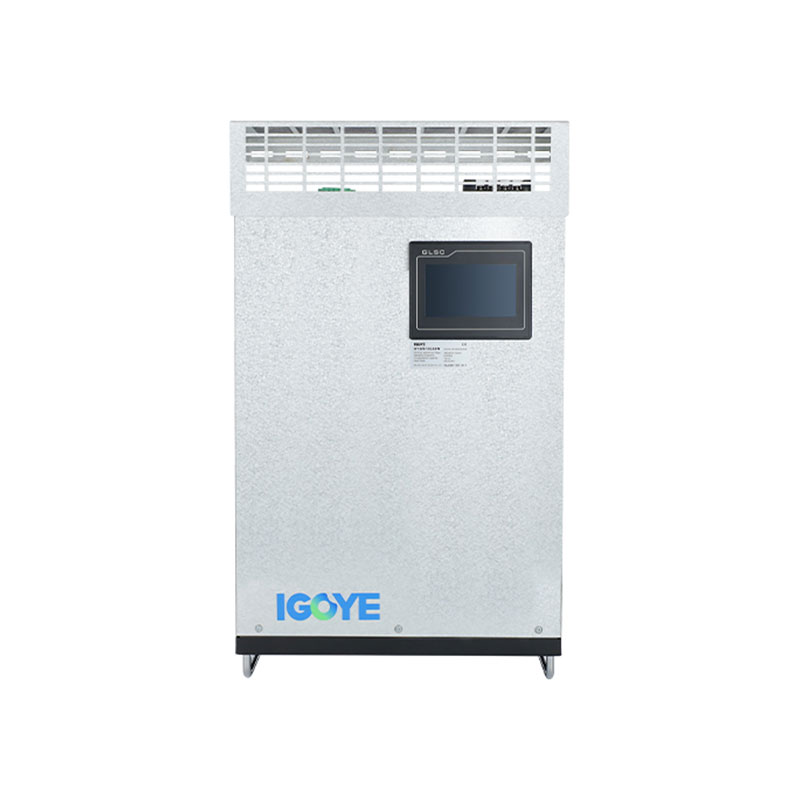

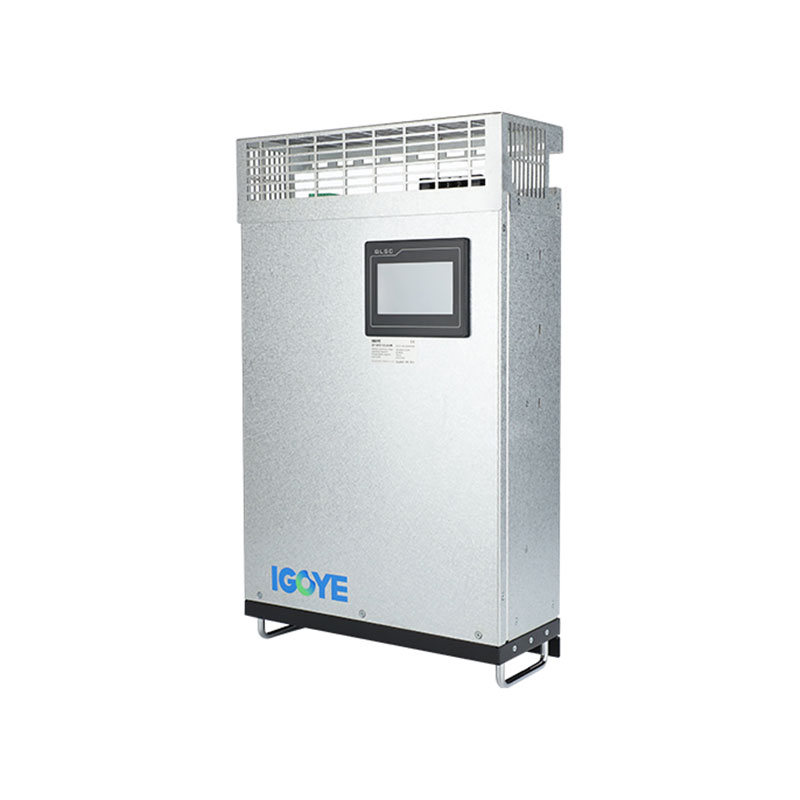

690v-gidaarka derbiga ah ee 'Vet-ka' Vart-Rontather Varter (SVG) wuxuu bixiyaa magdhawga awoodda firfircoon ee firfircoon ee korantada-sare ee korantada-sare ee sedex-weji ah 690V nidaamyada korantada. Xakameynta Digniinta ee DSP + CPLD CPLD Controolka iyo topology sedex-heer, SVG-gani wuxuu bixiyaa magdhow dhakhso leh oo sax ah oo leh waqti ka yar 10ms. Naqshadeynta modular waxay u saamaxdaa awoodda la isku halleeyo, iyo qaabeynta derbiga-gidaarka ayaa yareyneysa shuruudaha cagta. SVG-ka Tani waxay si wax ku ool ah u magdhabi kartaa labadaba awood firfircoon oo dabeecadeed, hagaajinta qodobka awoodda iyo kor u qaadista guud ahaan tayada awoodda. Iyada oo leh awood qiimeyneed oo ah 120kvar, oo ah 690V gidaarka derbiga ah ee loo yaqaan 'Svg' ee 'Svg' ee loo yaqaan 'SvG' ee loo yaqaan 'SVG' oo lagu rakibay oo loo yaqaan 'SVG' ee 'Svg'
Tilmaanta Moodeelka:
| Good | Svg | 0.69 | Kiilkan | / | 4l | W |
| Koodh ganacsi | Unic Varter Geters | Heerka korantada 0.69: 690v ± 20% |
Awoodda la qiimeeyay (KVar) 100/120 rubuc | 3l: saddex-weji saddex-silig 4L: Saddex-weji-silig |
W: gidaarka gidaarka |
Tilmaamaha:
● U adeegso DSP + CPLD XUQUUQDA DHAQANKA GUUD, TALOOYINKA SADDEXAAD SADDEXAAD SADDEXAAD, ISSASHADA KHATARTA ARRIMAHA ARDITE IYO ISKUULADA PWM si loo gaaro magdhow firfircoon oo sax ah oo ah awoodda falcelinta.
● Qaadashada naqshad heer-gabood leh, kaas oo fududeeya isku xirnaanta isbarbar dhiga ee cutubyo badan, waxay qaadataa meel yar oo waa fududahay in la ilaaliyo.
Dejinta qaab dhismeedka qaab dhismeedka hawada madax-bannaan iyo bakhaarada madaxa banaan waxay hubisaa howlgalka xasilloon ee qalabka.
● Samee magdhow firfircoon oo dhammaystiran oo ku saabsan awoodda firfircoonaanta ee falcelinta ah iyo awoodda falcelinta ee xayawaanka, oo xalliso dhibaatada saddexda-weji la'aanta isla waqtigaas.
● Xawaaraha jawaabta dhaqdhaqaaqa ee culeyska ayaa ah heerka millisecond, kaas oo gaari kara magdhow firfircoon oo sax ah oo loogu talagalay awoodda falcelinta ee culeyska saameynta.
Codsiyada:
690V giraanyada derbiga ah ee derbiga ah ee loo yaqaan 'Vend-Roms' ayaa ku habboon in loo dalbado codsiyada korantada-korantada ee u baahan xakameynta awoodda fikirka saxda ah:
● Hawlgallada Warshadaha culus (690V):Joogtaynta xasilloonida korantada iyo hagaajinta qodobka awooda ee warshadaha culus ee ka shaqeeya 690V.
● Xakamaynta Gawaarida Sare (690v):Magdhowga baahida awoodda falcelinta ee matoorrada korantada sare ee 690V nidaamyo, hagaajinta hufnaanta gawaarida iyo yareynta khasaaraha tamarta.
● 690V Shabakadaha qaybinta korantada:Kordhinta tayada awoodda iyo xasilloonida nidaamyada qaybinta ee 690v 690v.
● Macdanta iyo saliida & gaaska (690v):Bixinta magdhawga awooda lagu kalsoonaan karo ee deegaannada adag badanaa waxay isticmaalayaan 690V.
690V giraanyada derbiga ah ee derbiga ah ee kala-sooca ayaa bixiya xallin xoog leh oo hufan oo loogu talagalay in lagu hagaajiyo tayada tayada awoodda iyo xasilloonida korantada-sare ee korantada saddexda-wejiyada korantada 690v.
Cayayaanka farsamada:
| 220V taxanaha | 380v taxanaha | 500V taxanaha | 690V taxanaha | |||
| Sare | <2000m, oo ka sarreysa 2000m, oo dhalleeceeyso GB / T38599.2 | |||||
| Heerkulka deegaanka | -20 ~ + 50 ℃ | |||||
| Qoyaan qaraabo ah | ≤90%, majiraan uumi-baxa dusha marka heerkulka ugu yar ee ugu hooseeya uu yahay 25 ℃ | |||||
| Heerka wasakhda | Heerka III hoosta | |||||
| Ku shaqeynta korantada | AC220V ± 20% | AC380V ± 20% | AC500V ± 20% | Ac690v ± 20% | ||
| Shaqo soo noqnoqoshada | 50hz ± 5% | |||||
| Awoodda magdhowga ee lagu qiimeeyay | 5kvar | 15/35 / 50/0/35 / 100kvar | 90kvar | 120kvar | ||
| Qaab dhismeedka Grid | L / n | 3p3w / 3p4w | ||||
| Tirada cutubyada ku xiran isbarbar dhig | Dibligshenay | |||||
| Guud ahaan waxtarka mashiinka | ≥97% | |||||
| Inta soo noqnoqda | 32khz | 16khz | 12.8khz | 12.8khz | ||
| Xulashada Shaqada | Awoodda falcelinta | Falcelinta por wr, firfircoon po wer + isu dheelitir la'aan | ||||
| Heerka Magdhawga Awooda Soocelinta | ≥99% | > 95% | ||||
| Waqtiga jawaabta oo buuxda | <10ms | |||||
| Buuq | ≤60db | ≤60db | ≤65db | ≤65db | ||
| Habka Xakamaynta | 2-wado Rs485 Interface (taageerayaasha GPRS / WiFi) | |||||
| Ilaalinta | Xad dhaaf, softiweer / Qalabka isku-dhafka ah, xad-dhaafka girvolcoltage iyo hoos udhac, koronto-daran, korantada, xad-dhaafka ah, difaac aan caadi ahayn, iwm. | Xad dhaaf, softiweer / Qalabka korantada, xad-dhaafka girvolvoltige iyo xad-dhaaf, grigho korantada isku dheelitir la'aanta, koronta korantada, xad-dhaafka ah, si aan caadi ahayn, difaac wareejinta, iwm. | ||||

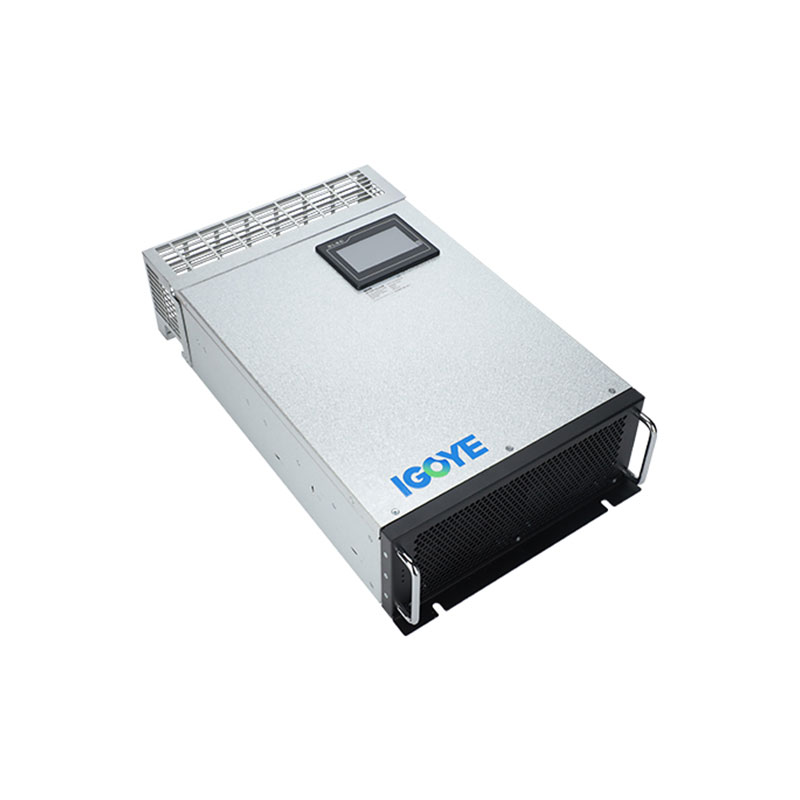

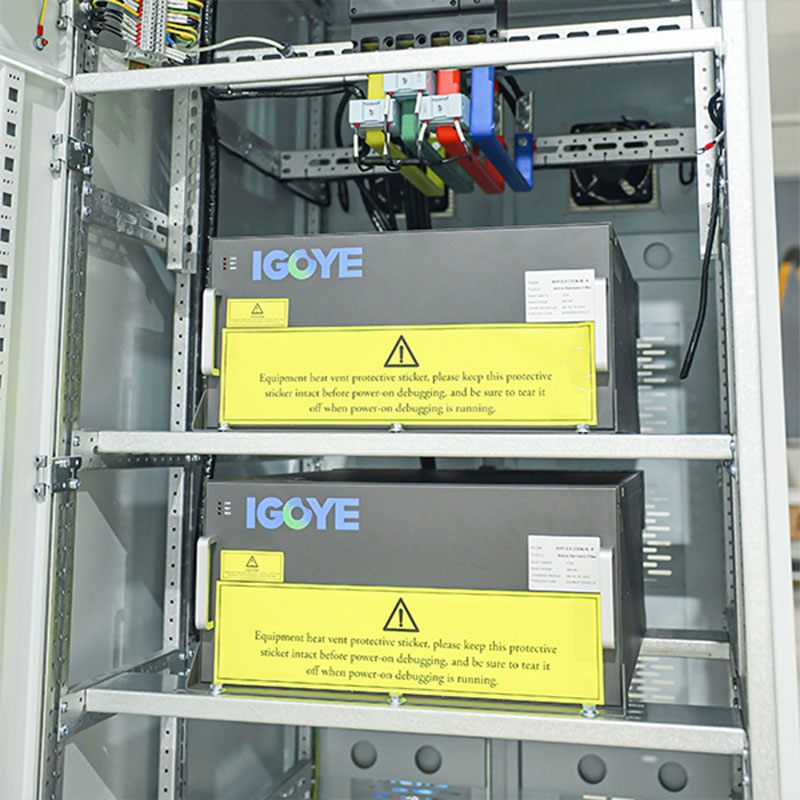

| Habka rakibaadda | Rack / gidaarka | Xaraf | ||||
| Khadka soo socda | Dib u soo gala (nooca rux), soo gala sare (gidaarka darbiga) | Xariiqda soo gala | ||||
| Heerka Ilaalinta | Ip20 | |||||
Moodeel & faahfaahin:
| Moodhyada | ||||
|---|---|---|---|---|
| Nambarka moodalka | Awoodda magdhowga (KVar) | Nidaamka Nidaamka (v) | Cabbir (d * w * h) | Habka qaboojinta |
| Gy svg-0.22-5k / 2l-r / w / w | 5 | 220 | 220 * 330 * 160mm | Qaboojinta khasabka ah |
| Gy svg-0.4-15k / 4l-r / w / w / w / w / w | 15 | 380 ± 20% | 460 * 490 * 89mm | |
| Gy svg-0.4-35k / 4l-r / w / w | 35 | 380 ± 20% | 460 * 490 * 89mm | |
| Gy svg-0.4-50k / 4l-r / w / w | 50 | 380 ± 20% | 500 * 510 * 190mm | |
| Gy svg-0.4-75k / 4l-r / w / w | 75 | 380 ± 20% | 500 * 550 * 240mm | |
| Gy svg-0.4-100k / 4l-r / w / w / w / w | 100 | 380 ± 20% | 500 * 550 * 240mm | |
| Gy svg-0.5-90k / 4l-r / w / w | 90 | 500 ± 20% | 495 * 675 * 275mm | |
| Gy svg-0.69-120K / 4l-r / w / w | 120 | 690 ± 20% | 495 * 675 * 275mm | |
