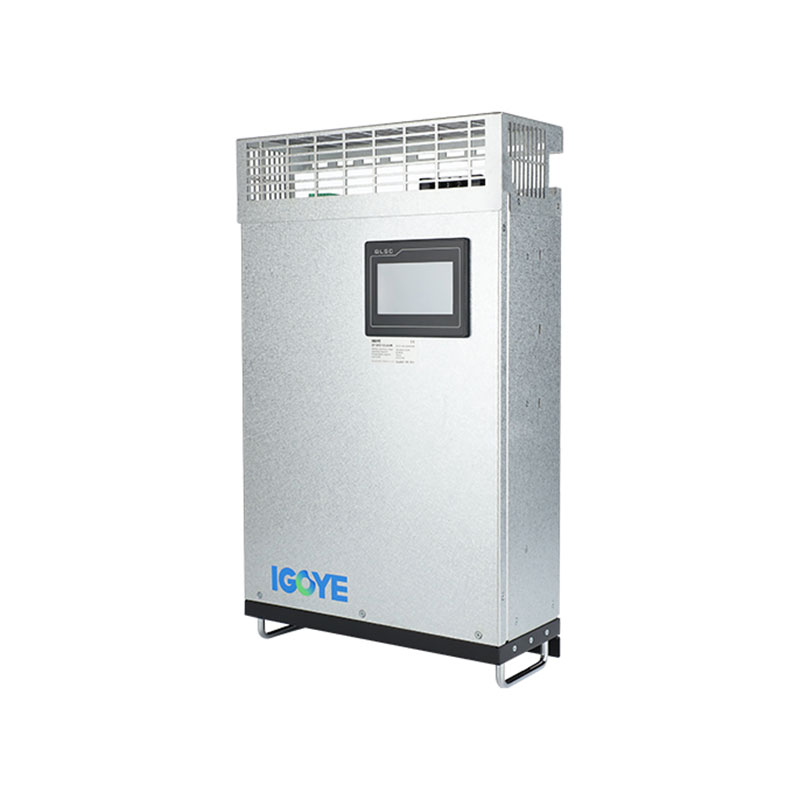

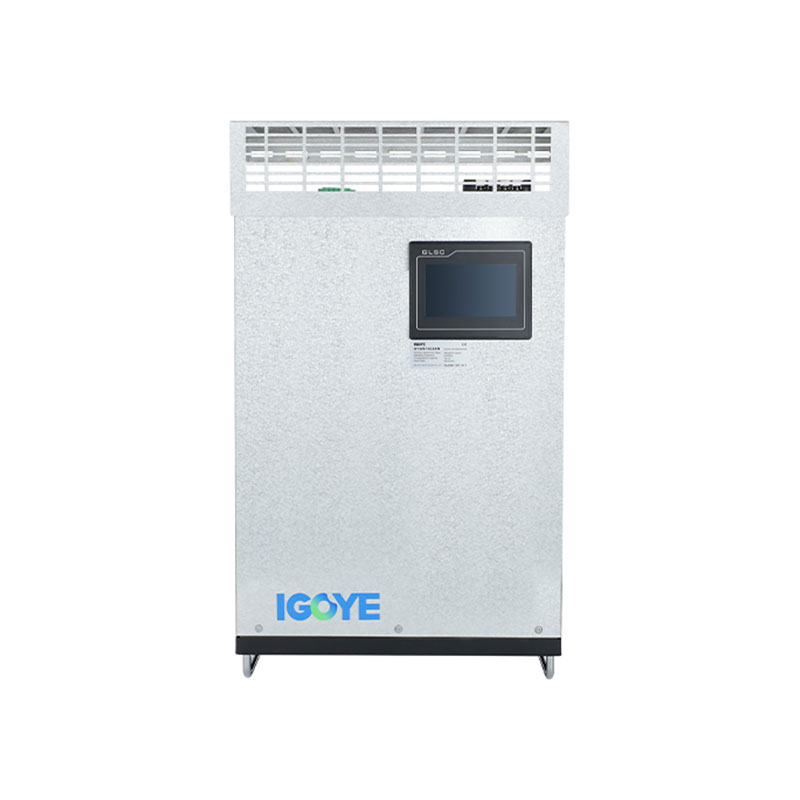

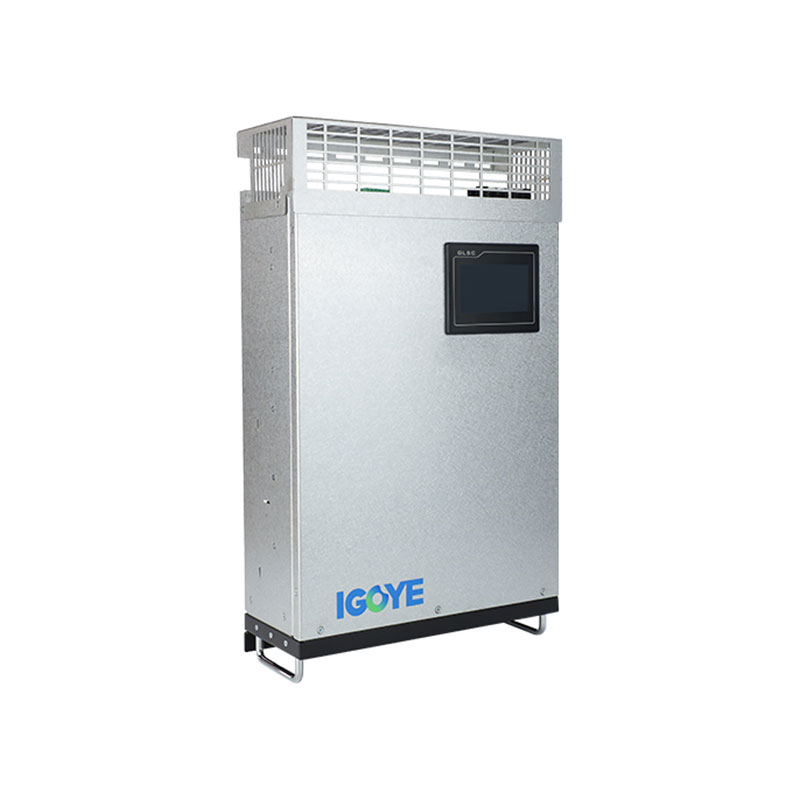

380v derbiga derbiga ah ee vart-ka
Guusa waxay bixisaa waarta oo waarta ee waarta ee 380V gidaarka vart-gitteric-ka ee nidaamyada saddexda wajiga. Magdhowga awoodda firfircoon ee firfircoon, <10ms jawaabta, DSP + xakamaynta CPLD. Waxay hagaajisaa qodobka awoodda ee warshadaha, ganacsiga, iyo codsiyada tamarta dib loo cusbooneysiin karo. Modular, qaabeynta gidaarka darbiga.
380V gidacal Vince-Rotced Vect Vart Geters (SVG) wuxuu bixiyaa magdhawga awoodda firfircoon ee firfircoon ee saddexda-weji koronto 380v. U adeegsiga Xakameynta Digital ee DSP + CPLD CPLD Controolka iyo topolology sedex-heer ah, SVG-gani wuxuu keenayaa magdhow dhakhso leh oo sax ah oo leh waqti jawaab celin ah oo ka yar 10ms. Naqshadeeyaheeda modular wuxuu u oggolaanayaa awoodda la isku halleyn karo iyada oo loo marayo isku xirnaan isbarbar dhiga, iyo qaabeynta derbiga-derbiga ah waxay yareysaa shuruudaha booska waxayna fududeysaa rakibaadda. SVG-ka Tani waxay si wax ku ool ah u magdhabi kartaa labadaba awooda firfircoon ee firfircoon, waxay wanaajisaa qodobka awoodda, oo waxay wanaajisaa guud ahaan tayada awoodda. Awoodda la heli karo waxay u dhexeeyaan 15kvar ilaa 100kvar, oo bixiya xalal dabacsan oo loogu talagalay codsiyada kala duwan.
Tilmaanta Moodeelka:
| Good | Svg | 0.4 | 5000 50 | / | 4l | W |
| Koodh ganacsi | Unic Varter Geters | Heerka korantada 0.4: 380v ± 20% |
Awoodda (KVar) 10/15/35/50/75 / 100kvar | 3l: saddex-weji saddex-silig 4L: Saddex-weji-silig |
W: gidaarka gidaarka |
Tilmaamaha:
● U adeegso DSP + CPLD XUQUUQDA DHAQANKA GUUD, TALOOYINKA SADDEXAAD SADDEXAAD SADDEXAAD, ISSASHADA KHATARTA ARRIMAHA ARDITE IYO ISKUULADA PWM si loo gaaro magdhow firfircoon oo sax ah oo ah awoodda falcelinta.
● Qaadashada naqshad heer-gabood leh, kaas oo fududeeya isku xirnaanta isbarbar dhiga ee cutubyo badan, waxay qaadataa meel yar oo waa fududahay in la ilaaliyo.
Dejinta qaab dhismeedka qaab dhismeedka hawada madax-bannaan iyo bakhaarada madaxa banaan waxay hubisaa howlgalka xasilloon ee qalabka.
● Samee magdhow firfircoon oo dhammaystiran oo ku saabsan awoodda firfircoonaanta ee falcelinta ah iyo awoodda falcelinta ee xayawaanka, oo xalliso dhibaatada saddexda-weji la'aanta isla waqtigaas.
● Xawaaraha jawaabta dhaqdhaqaaqa ee culeyska ayaa ah heerka millisecond, kaas oo gaari kara magdhow firfircoon oo sax ah oo loogu talagalay awoodda falcelinta ee culeyska saameynta.
Codsiyada:
380v giraanyada derbiga derbiga ah ee loo yaqaan 'derley') ayaa ku habboon hagaajinta tayada awoodda ee noocyo ka mid ah codsiyada saddex-weji ah:
● Goobaha Warshadaha:Xasilinta korantada iyo hagaajinta qodobka awooda ee warshadaha iyo wax soo saarka dhirta.
● Dhismooyinka Ganacsiga:Kordhinta tayada awoodda iyo yareynta kharashaadka tamarta ee dhismayaasha ganacsiga ee korantada leh ee korantada leh.
● Xakameynta gawaarida saddex-wejiMagdhowga baahida awoodda ee falcelinta ee motes saddex-weji ah, hagaajinta hufnaanta dhaqdhaqaaqa.
● Is dhexgalka tamarta dib loo cusbooneysiin karo:Taageerida xasilloonida sare iyo tayada awoodda ee nidaamyada saddex-weji ee leh ilo koronto oo isku-dhafan.
380V giraanyada derbiga-derbiga ah ee loo yaqaan 'giraanyada' Vend-derent 'ee loo yaqaan' Vend-Romers 'ayaa bixiya xallin adag oo hufan oo loogu talagalay ka-faa'iideysiga tayada awoodda iyo xasilloonida saddexda-wejiyada korantada 380v.
Cayayaanka farsamada:
| 220V taxanaha | 380v taxanaha | 500V taxanaha | 690V taxanaha | |||
| Sare | <2000m, oo ka sarreysa 2000m, oo dhalleeceeyso GB / T38599.2 | |||||
| Heerkulka deegaanka | -20 ~ + 50 ℃ | |||||
| Qoyaan qaraabo ah | ≤90%, majiraan uumi-baxa dusha marka heerkulka ugu yar ee ugu hooseeya uu yahay 25 ℃ | |||||
| Heerka wasakhda | Heerka III hoosta | |||||
| Ku shaqeynta korantada | AC220V ± 20% | AC380V ± 20% | AC500V ± 20% | Ac690v ± 20% | ||
| Shaqo soo noqnoqoshada | 50hz ± 5% | |||||
| Awoodda magdhowga ee lagu qiimeeyay | 5kvar | 15/35 / 50/0/35 / 100kvar | 90kvar | 120kvar | ||
| Qaab dhismeedka Grid | L / n | 3p3w / 3p4w | ||||
| Tirada cutubyada ku xiran isbarbar dhig | Dibligshenay | |||||
| Guud ahaan waxtarka mashiinka | ≥97% | |||||
| Inta soo noqnoqda | 32khz | 16khz | 12.8khz | 12.8khz | ||
| Xulashada Shaqada | Awoodda falcelinta | Falcelinta por wr, firfircoon po wer + isu dheelitir la'aan | ||||
| Heerka Magdhawga Awooda Soocelinta | ≥99% | > 95% | ||||
| Waqtiga jawaabta oo buuxda | <10ms | |||||
| Buuq | ≤60db | ≤60db | ≤65db | ≤65db | ||
| Habka Xakamaynta | 2-wado Rs485 Interface (taageerayaasha GPRS / WiFi) | |||||
| Ilaalinta | Xad dhaaf, softiweer / Qalabka isku-dhafka ah, xad-dhaafka girvolcoltage iyo hoos udhac, koronto-daran, korantada, xad-dhaafka ah, difaac aan caadi ahayn, iwm. | Xad dhaaf, softiweer / Qalabka korantada, xad-dhaafka girvolvoltige iyo xad-dhaaf, grigho korantada isku dheelitir la'aanta, koronta korantada, xad-dhaafka ah, si aan caadi ahayn, difaac wareejinta, iwm. | ||||
| Habka rakibaadda | Rack / gidaarka | Xaraf | ||||
| Khadka soo socda | Dib u soo gala (nooca rux), soo gala sare (gidaarka darbiga) | Xariiqda soo gala | ||||
| Heerka Ilaalinta | Ip20 | |||||
Moodeel & faahfaahin:
| Moodhyada | ||||
|---|---|---|---|---|
| Nambarka moodalka | Awoodda magdhowga (KVar) | Nidaamka Nidaamka (v) | Cabbir (d * w * h) | Habka qaboojinta |
| Gy svg-0.22-5k / 2l-r / w / w | 5 | 220 | 220 * 330 * 160mm | Qaboojinta khasabka ah |
| Gy svg-0.4-15k / 4l-r / w / w / w / w / w | 15 | 380 ± 20% | 460 * 490 * 89mm | |
| Gy svg-0.4-35k / 4l-r / w / w | 35 | 380 ± 20% | 460 * 490 * 89mm | |
| Gy svg-0.4-50k / 4l-r / w / w | 50 | 380 ± 20% | 500 * 510 * 190mm | |
| Gy svg-0.4-75k / 4l-r / w / w | 75 | 380 ± 20% | 500 * 550 * 240mm | |
| Gy svg-0.4-100k / 4l-r / w / w / w / w | 100 | 380 ± 20% | 500 * 550 * 240mm | |
| Gy svg-0.5-90k / 4l-r / w / w | 90 | 500 ± 20% | 495 * 675 * 275mm | |
| Gy svg-0.69-120K / 4l-r / w / w | 120 | 690 ± 20% | 495 * 675 * 275mm | |
