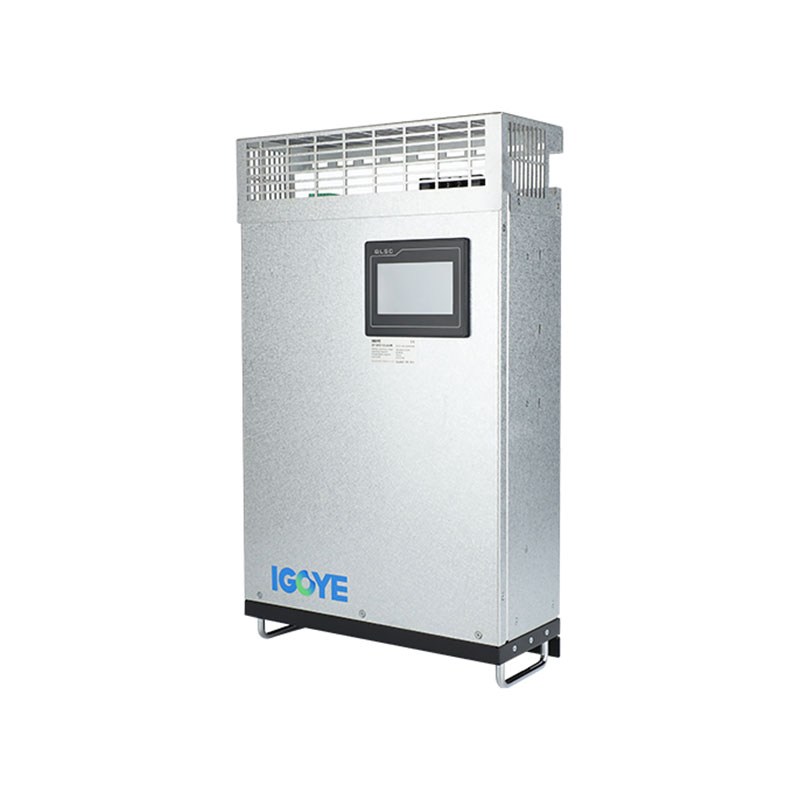

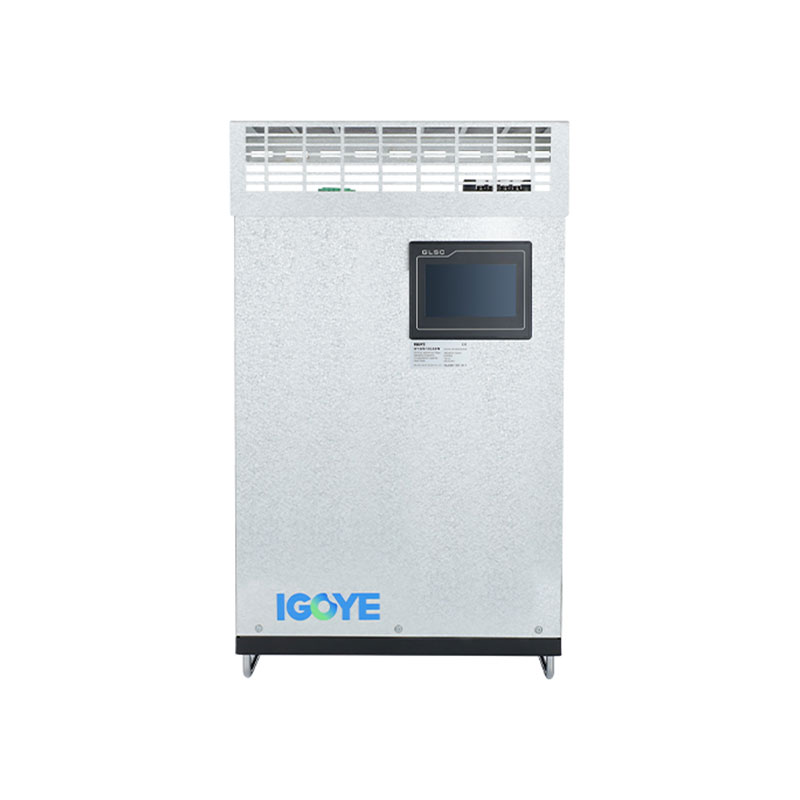

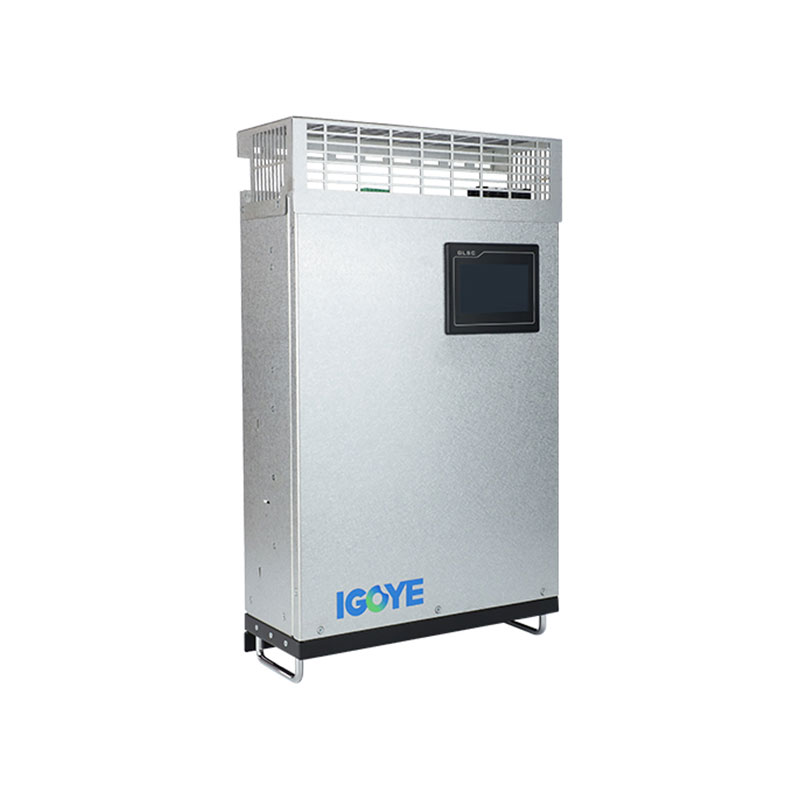

380v gidaarka firfircoon ee gidaarka leh
Guusa waxay bixisaa shaashad-derbiga firfircoon ee 380v ee loo yaqaan 'gidaarka', oo loogu talagalay oo lagu soo saaray warshadda Shiinaha ee leh tikniyoolajiyadda horumarsan. Waxqabadka sare, fududahay in la rakibo, laguna kalsoonaan karo codsiyada kala duwan. Nala soo xiriir Hadda si aad u hesho faahfaahin dheeraad ah oo aad u hesho heshiiska ugu fiican!
Miiska 380v ee derbiga ah ee loo yaqaan 'gidaarka'-gidaarka Shaqaalaha kontoroolka dhijitaalka ah ee Sare + CPLD CPLD Xakamaynta iyo topology Saddex-heer ah, cutubkan badbaadada ee meesha lagu keydiyo waxay soo bandhigayaan magdhowga hadda jira ee loo yaqaan 'Rexonic'. Astaamaha muhiimka ah waxaa ka mid ah xaddiga shaandhaynta la-beddelka ee ballaaran (2-aad ilaa 50-aad ee is-dhaafsiga), heerka shaandhaynta shaandhaynta sare (ilaa 95%), iyo qaab-dhismeedka modular ee isku xirka isbarbardhiga iyo dayactirka. Waxaa lagu heli karaa qiimeynno kala duwan oo hadda ah
Tilmaanta Moodeelka:
| Good | Luus | 0.4 | 50ca | / | 4l | W |
| Koodh ganacsi | Filterka firfircoon | Heerka korantada 0.4: 380v ± 20% |
Awoodda (KVar) 25/50/75 / 100 / 150a | 3l: saddex-weji saddex-silig 4L: Saddex-weji-silig |
W: gidaarka gidaarka |
Tilmaamaha:
● U adeegso DSP + CPLD Core RPLD Core Core, oo ah tikniyoolajiyada sare ee topology, oo ah tikniyoolajiyad is-ogaalnimo ee is-ogaalka ah iyo istiraatiijiyadda xakamaynta ee PWM si loo gaaro magdhow sax ah ee is-waafajinta.
● Qaadashada naqshad heer-gabood leh, kaas oo fududeeya isku xirnaanta isbarbar dhiga ee cutubyo badan, waxay qaadataa meel yar oo waa fududahay in la ilaaliyo.
Dejinta qaab dhismeedka qaab dhismeedka hawada madax-bannaan iyo bakhaarada madaxa banaan waxay hubisaa howlgalka xasilloon ee qalabka.
● Waxay sifeyn kartaa is-afgaranthicis badan oo iswaafajin ah, laga bilaabo 2 illaa 50 iswaafajin, iyo xallinta dhibaatada saddex-waji isku-dheellitirnaan isku mid ah.
● Heerka miisaanka shaandhaynta is-beddelka ayaa sarreeya. Haddii awooddu oggol tahay, heerka shaandhaynta shaandhaynta hadda la is-beddelo wuxuu noqon karaa mid ka sarreeya 95%. Samee 100% wax soo saarka xaddidaadda hadda si loo hubiyo hawlgal muddada fog ah ee qalabka.
Codsiyada:
380v Pleslers Firfircoonaanta Guryaha ee Gaarka ah ayaa muhiim u ah joogtaynta tayada awoodda ee codsiyada warshadaha kala duwan:
● Otomatiga warshadaha:Ilaalinta Qalabka Dibedda Xasaasiga ah iyo Hubinta Hawlgallada Lagu Filayo ee Dabcaanka Soo noqnoqda ee isbeddeladu (VFDs), robotics, iyo xamuul kale oo xasaasi ah.
● Dhirta waxsoosaarka:Hagaajinta tayada awoodda iyo yareynta kharashka tamarta adoo yareynaya dhalanrog iswaafajinta.
● Xarumaha Xogta:Bixinta awood nadiif ah oo loogu talagalay xasaasiga kaabayaasha iyo ka hortagga macluumaadka khasaaraha awooda awgeed.
● Warshadaha saliida iyo gaaska:Hubinta in hawlgalka la isku halleyn karo ee bambooyinka, culeysyada, iyo qalab kale oo daruuriga ah ee deegaannada adag.
● Nidaamyada tamarta dib loo cusbooneysiin karo:Isku-darka ilaha tamarta dib loo cusboonaysiin karo oo ku yaal geedka inta uu sii wado tayada awoodda iyo xasilloonida.
380v deryayaasha derbiga firfircoon ee firfircoon waxay bixiyaan xal lagu kalsoonaan karo oo wax ku ool ah oo loogu talagalay in lagu sii daayo tayada awoodda ee codsiyada 380v ee 380V.
Cayayaanka farsamada:
| 220V taxanaha | 380v taxanaha | 500V taxanaha | 690V taxanaha | ||
| Sare | <2000m, oo ka sarreysa 2000m, oo dhalleeceeyso GB / T38599.2 | ||||
| Heerkulka deegaanka | -20 ~ + 50 ℃ | ||||
| Qoyaan qaraabo ah | ≤90%, majiraan uumi-baxa dusha marka heerkulka ugu yar ee ugu hooseeya uu yahay 25 ℃ | ||||
| Heerka wasakhda | Heerka III hoosta | ||||
| Ku shaqeynta korantada | AC220V ± 20% | AC380V ± 20% | AC500V ± 20% | Ac690v ± 20% | |
| Shaqo soo noqnoqoshada | 50hz ± 5% | ||||
| Magdhow hadda | 25a | 25/50/75/100 / 150a | 100a | 100a | |
| Qaab dhismeedka Grid | L / n | 3p3w / 3p4w | 3p3w / 3p4w | 3p3w / 3p4w | |
| Tirada cutubyada ku xiran isbarbar dhig | Dibligshenay | ||||
| Guud ahaan waxtarka mashiinka | ≥97% | ||||
| Qaab dhismeedka Grid | 32khz | 16khz | 12.8khz | 12.8khz | |
| Baaxadda magdhowga | 2 ~ 50 jeer, heerka magdhow hal magdhow ayaa la hagaajin karaa | ||||
| Xulashada Shaqada | Awoodda falcelinta | Awoodda falcelinta, awoodda falcelinta + asymmetry | |||
| Heerka Magdhawga Awooda Soocelinta | ≥95% | > 92% | |||
| Awoodda shaandhaynta dhexdhexaadnimada | Awoodda shaandhaynta xariiqda dhexdhexaad ah waa 3 jeer oo ah awoodda shaandhaynta wejiga | ||||
| Waqtiga jawaabta oo buuxda | <10ms | 40ms | 40ms | 40ms | |
| Buuq | ≤60db | ≤60db | ≤65db | ≤65db | |
| Habka Xakamaynta | 2-wado Rs485 Interface (taageerayaasha GPRS / WiFi) | ||||
| Ilaalinta | Xad dhaaf, softiweer / Qalabka isku-dhafka ah, xad-dhaafka girvolcoltage iyo hoos udhac, koronto-daran, korantada, xad-dhaafka ah, difaac aan caadi ahayn, iwm. | Culeys, softiweer / qalabka korka, xad-dhaafka wadnaha, grigolvoltige, isbarbardhiga korantada, korodhka korantada, xad-dhaafka korantada, si aan caadi ahayn, difaac wareejinta wareega, iwm. | |||

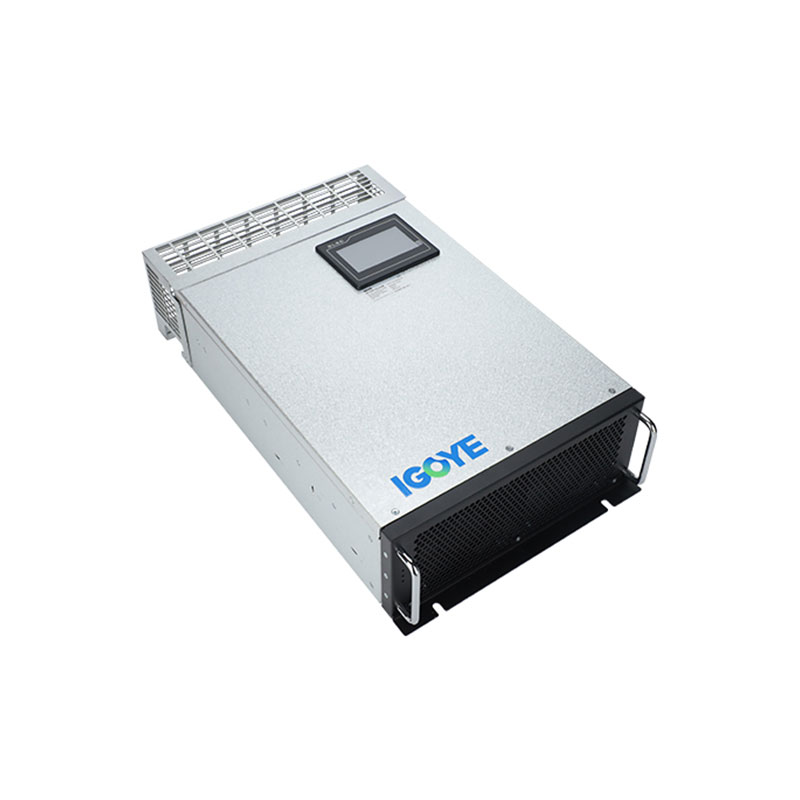

| Habka rakibaadda | Rack / gidaarka | Xaraf | |||
| Khadka soo socda | Dib u soo gala (nooca rux), soo gala sare (gidaarka darbiga) | Xariiqda soo gala | |||
| Heerka Ilaalinta | Ip20 | ||||
Moodeel & faahfaahin:
| Moodhyada | ||||
|---|---|---|---|---|
| Nambarka moodalka | Lagu qiimeeyay hadda (a) | Nidaamka Nidaamka (v) | Cabbir (d * w * h) | Habka qaboojinta |
| Gy apf-0.22-25a / 2l-r / w / w / w / w | 25 | 220 | 220 * 330 * 160mm | Qaboojinta khasabka ah |
| Gy apf-0.4-25a / 4l-r / w / w / w | 25 | 380 ± 20% | 460 * 490 * 89mm | |
| Gy apf-0.4-50aa / 4l-r / w / w / w | 50 | 380 ± 20% | 460 * 490 * 89mm | |
| Gy apf-0.4-75a / 4l-r / w / w / w / w | 75 | 380 ± 20% | 500 * 510 * 190mm | |
| Gy apf-0.4-100a / 4l-r / w / w / w / w / w | 100 | 380 ± 20% | 500 * 550 * 240mm | |
| Gy apf-0.4-150a / 4l-r / w / w | 150 | 380 ± 20% | 500 * 550 * 240mm | |
| Gy apf-0.5-100a / 4l-r / w / w / w / w | 100 | 500 ± 20% | 495 * 675 * 275mm | |
| Gy apf-0.69-100a / 4l-r / w / w | 100 | 690 ± 20% | 495 * 675 * 275mm | |
