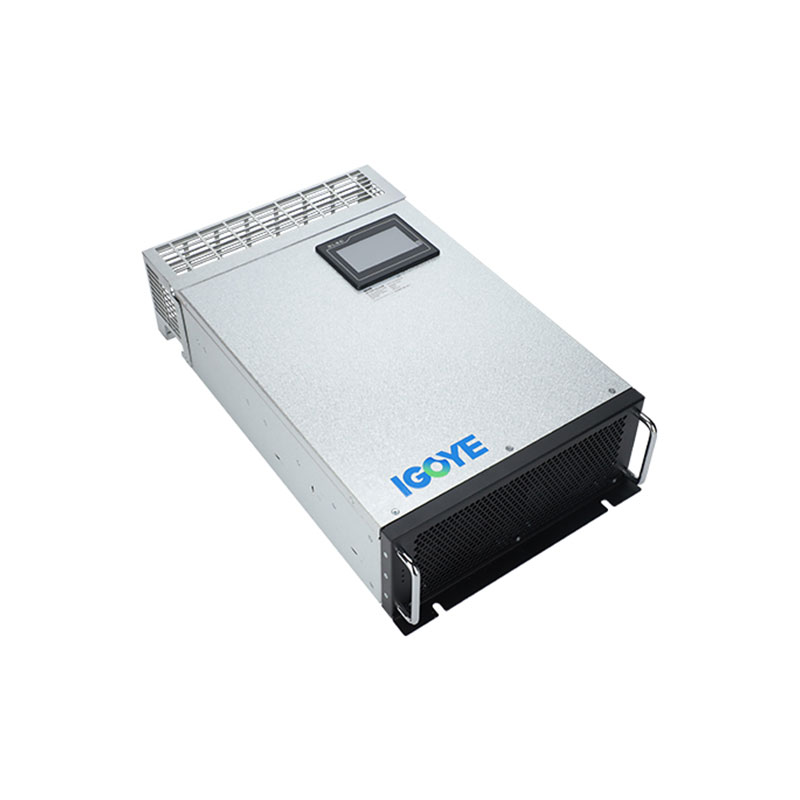

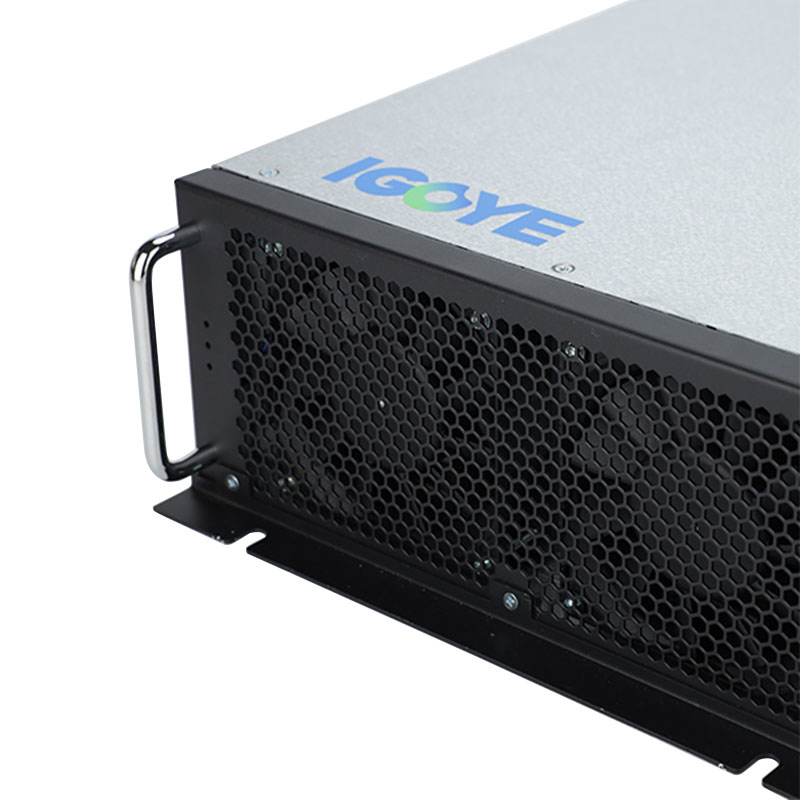

690V Rack Mount Leat Mentoncenc-ka firfircoon
MARKA LACAG LA'AANTA QARSOODIGA 690V Guusa waxay bixisaa xalal tayo sare leh oo leh wax qabad aad u sarreeya iyo isku halaynta. Hel hadal dhammaystiran oo loogu talagalay baahiyahaaga oo kor u qaadaya waxqabadka nidaamkaaga. Nala soo xiriir Hadda si aad u qiimeyso iyo taageerada ugu fiican ee taageerada iibka. Falso soonka si kor loogu qaado waxsoosaarkaaga maanta!
Filter-ka-guud ee 690V ee loo yaqaan 'Menuch' Qeybtan xarkaha ah waxay u isticmaashaa xudunta DSP + CPLD Core Core Core Core Core iyo Saddex-heer heer-ku-qaadid magdhow sax ah ilaa iyo inta 50-aad. Awoodda 100-ka ee 100A lagu qiimeeyay, si wax ku ool ah wax uga qabashada dhalanrog is-waafajinta iyo saddex isku dheelitir la'aanta saddex-weji. Naqshadeynta modular waxay taageereysaa isku xirnaan isbarbar dhig ah oo ku saabsan awoodda kordhaysa iyo dayactirka la fududeeyey. Qaboojinta hawada ee khasabka ah waxay xaqiijineysaa hawlgal la isku halleyn karo. Filter-ka caadiga ah ee loo yaqaan 'Brack' ee loo yaqaan 'Brack'
Tilmaanta Moodeelka:
| Good | Luus | 0.69 | 100a | / | 4l | R |
| Koodh ganacsi | Filterka firfircoon | Heerka korantada 0.69: 690v ± 20% |
Awoodda la qiimeeyay (KVar) 100A | 3l: saddex-weji saddex-silig 4L: Saddex-weji-silig |
R: Rack Mount |
Tilmaamaha:
● U adeegso DSP + CPLD Core RPLD Core Core, oo ah tikniyoolajiyada sare ee topology, oo ah tikniyoolajiyad is-ogaalnimo ee is-ogaalka ah iyo istiraatiijiyadda xakamaynta ee PWM si loo gaaro magdhow sax ah ee is-waafajinta.
● Qaadashada naqshad heer-gabood leh, kaas oo fududeeya isku xirnaanta isbarbar dhiga ee cutubyo badan, waxay qaadataa meel yar oo waa fududahay in la ilaaliyo.
Dejinta qaab dhismeedka qaab dhismeedka hawada madax-bannaan iyo bakhaarada madaxa banaan waxay hubisaa howlgalka xasilloon ee qalabka.
● Waxay sifeyn kartaa is-afgaranthicis badan oo iswaafajin ah, laga bilaabo 2 illaa 50 iswaafajin, iyo xallinta dhibaatada saddex-waji isku-dheellitirnaan isku mid ah.
● Heerka miisaanka shaandhaynta is-beddelka ayaa sarreeya. Haddii awooddu oggol tahay, heerka shaandhaynta shaandhaynta hadda la is-beddelo wuxuu noqon karaa mid ka sarreeya 95%. Samee 100% wax soo saarka xaddidaadda hadda si loo hubiyo hawlgal muddada fog ah ee qalabka.
Codsiyada:
Qiyaasta miisaska ee loo yaqaan 'Mount' oo ah miirayaashu waxay muhiim u yihiin joogtaynta tayada korantada iyo waxqabadka qalabka ee nidaamyada korantada ee korantada:
● Codsiyada warshadaha culus:Qiyaasta yareynta ee ay soo saartay Dabcaanka soo noqnoqda ee waaweyn (VFDFers), timitir, iyo culays kale oo aan toos ahayn oo aan toos ahayn oo ku jira nidaamyada korantada.
● Macdanta iyo saliida & gaaska:Hubinta hawlgalka la isku halleyn karo ee qalabka muhiimka ah ee deegaannada adag ee leh korantada korantada korantada.
● Is dhexgalka tamarta dib loo cusbooneysiin karo:Xadhiga xasilinta ilaha tamarta dib-u-cusboonaysiinta korantada ee korantada ee ku xidhan geedka.
● Xarumaha Xogta iyo kaabayaasha muhiimka ah:Ilaalinta qalabka xasaasiga ah iyo joogtaynta tayada awoodda ee ku saabsan xarunta xogta-korantada ee korantada.
690V Rack Rontans-ka Firfircoon ee Brack Firfircoon ayaa bixiya yareynta is waafajinta ee wax ku oolka ah ee tayada awoodda korantada ee codsiyada korantada.
Cayayaanka farsamada:
| 220V taxanaha | 380v taxanaha | 500V taxanaha | 690V taxanaha | ||
| Sare | <2000m, oo ka sarreysa 2000m, oo dhalleeceeyso GB / T38599.2 | ||||
| Heerkulka deegaanka | -20 ~ + 50 ℃ | ||||
| Qoyaan qaraabo ah | ≤90%, majiraan uumi-baxa dusha marka heerkulka ugu yar ee ugu hooseeya uu yahay 25 ℃ | ||||
| Heerka wasakhda | Heerka III hoosta | ||||
| Ku shaqeynta korantada | AC220V ± 20% | AC380V ± 20% | AC500V ± 20% | Ac690v ± 20% | |
| Shaqo soo noqnoqoshada | 50hz ± 5% | ||||
| Magdhow hadda | 25a | 25/50/75/100 / 150a | 100a | 100a | |
| Qaab dhismeedka Grid | L / n | 3p3w / 3p4w | 3p3w / 3p4w | 3p3w / 3p4w | |
| Tirada cutubyada ku xidhan isbarbar dhig |
Dibligshenay | ||||
| Guud ahaan waxtarka mashiinka | ≥97% | ||||
| Qaab dhismeedka Grid | 32khz | 16khz | 12.8khz | 12.8khz | |
| Baaxadda magdhowga | 2 ~ 50 jeer, heerka magdhow hal magdhow ayaa la hagaajin karaa | ||||
| Xulashada Shaqada | Awoodda falcelinta | Awoodda falcelinta, awoodda falcelinta + asymmetry | |||
| Awoodda falcelinta Heerka Magdhowga |
≥95% | > 92% | |||
| Shaandhaynta dhexdhexaadnimada awood |
Awoodda shaandhaynta xariiqda dhexdhexaad ah waa 3 jeer oo ah awoodda shaandhaynta wejiga | ||||
| Waqtiga jawaabta oo buuxda | <10ms | 40ms | 40ms | 40ms | |
| Buuq | ≤60db | ≤60db | ≤65db | ≤65db | |
| Habka Xakamaynta | 2-wado Rs485 Interface (taageerayaasha GPRS / WiFi) | ||||
| Ilaalinta | Xad dhaaf, softiweer / Qalabka isku-dhafka ah, xad-dhaafka girvolcoltage iyo hoos udhac, koronto-daran, korantada, xad-dhaafka ah, difaac aan caadi ahayn, iwm. | Culeys, softiweer / qalabka korka, xad-dhaafka wadnaha, grigolvoltige, isbarbardhiga korantada, korodhka korantada, xad-dhaafka korantada, si aan caadi ahayn, difaac wareejinta wareega, iwm. | |||
| Habka rakibaadda | Rack / gidaarka | Xaraf | |||
| Khadka soo socda | Dib u soo gala (nooca rux), soo gala sare (gidaarka darbiga) | Xariiqda soo gala | |||
| Heerka Ilaalinta | Ip20 | ||||

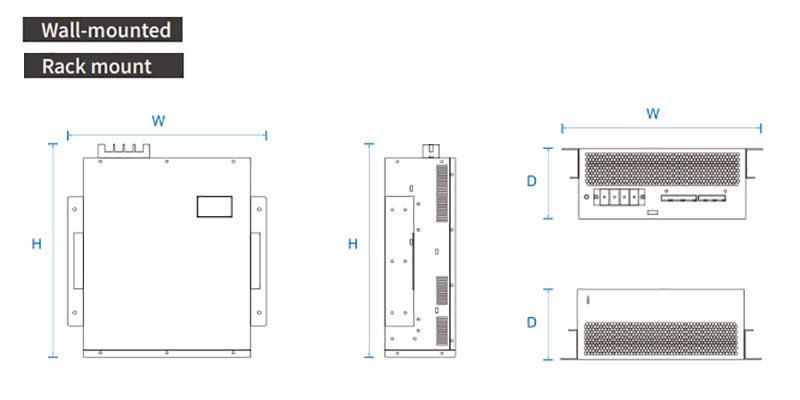

Moodeel & faahfaahin:
| Nambarka moodalka | Lagu qiimeeyay hadda (a) | Nidaamka Nidaamka (v) | Cabbir (d * w * h) | Habka qaboojinta |
| Gy apf-0.22-25a / 2l-r / w / w / w / w | 25 | 220 | 220 * 330 * 160mm | Qaboojinta khasabka ah |
| Gy apf-0.4-25a / 4l-r / w / w / w | 25 | 380 ± 20% | 460 * 490 * 89mm | |
| Gy apf-0.4-50aa / 4l-r / w / w / w | 50 | 380 ± 20% | 460 * 490 * 89mm | |
| Gy apf-0.4-75a / 4l-r / w / w / w / w | 75 | 380 ± 20% | 500 * 510 * 190mm | |
| Gy apf-0.4-100a / 4l-r / w / w / w / w / w | 100 | 380 ± 20% | 500 * 550 * 240mm | |
| Gy apf-0.4-150a / 4l-r / w / w | 150 | 380 ± 20% | 500 * 550 * 240mm | |
| Gy apf-0.5-100a / 4l-r / w / w / w / w | 100 | 500 ± 20% | 495 * 675 * 275mm | |
| Gy apf-0.69-100a / 4l-r / w / w | 100 | 690 ± 20% | 495 * 675 * 275mm |
