Wax soo wadaban
Derbi-gidaarka derbiga ah
Guusa waxay hogaamisaa Shiinaha oo gida-derley derbi-dhajiya soo saaraha Jeneric ee Static Statick Varter. Waxay isticmaashaa xakameynta dijitaalka ah, waxay bixisaa jawaab dhakhso leh (<10ms), waxay saxaysaa isku-dheelitir la'aanta, waxayna wanaajisaa qodobka awoodda. Ku habboon in la dego, warshadaha, iyo codsiyada tamarta dib loo cusbooneysiin karo.
Hore u sii hormaridka Guurka Vart: Taxanaha Gy ASVG waa xalka sare ee loogu talagalay magdhawga awoodda firfircoon ee firfircoon. Asvg-denvg ee loo yaqaan 'gidaarka' asvg 'ee loo yaqaan' korantada 'wuxuu u adeegsadaa lineroonka nooca korantada ku xidhan oo isbarbar dhigaya korantada, taasoo awood u siineysa xakameynta korantada ee saxda ah iyo degdegga ah. DSP + CPLD Digital Core Core, Saddex-heer Topolology, iyo algorithms horumarsan ayaa hubiya magdhow sax ah, xallin saddex-weji la'aan iyo hagaajinta qodobka awoodda. Marka laga hadlayo waqtiga jawaabta ee ka yar 10msms, waxay ku habboon tahay codsiyada leh xamuulnada. Ku habboon degenaanshaha, warshadaha, iyo codsiyada tamarta dib loo cusbooneysiin karo.
Tilmaanta Moodeelka:
| Good | ASVG | 0.4 | 5000 50 | / | 4l | W |
| Koodh ganacsi | Horusocodka Artctic Vart Geters | Heerka korantada 0.22: 220v 0.4: 380v ± 20% 0.5: 500v ± 20% 0.69: 690v ± 20% |
Awoodda (KVar) 5/15/35/50/75 / 100kvar | 2l: hal-weji 3l: saddex-weji saddex-silig 4L: Saddex-weji-silig |
W: gidaarka gidaarka |
Tilmaamaha:
● U adeegso DSP + CPLD XUQUUQDA DHAQANKA GUUD, TALOOYINKA SADDEXAAD SADDEXAAD SADDEXAAD, ISSASHADA KHATARTA ARRIMAHA ARDITE IYO ISKUULADA PWM si loo gaaro magdhow firfircoon oo sax ah oo ah awoodda falcelinta.
● Qaadashada naqshad heer-gabood leh, kaas oo fududeeya isku xirnaanta isbarbar dhiga ee cutubyo badan, waxay qaadataa meel yar oo waa fududahay in la ilaaliyo.
Dejinta qaab dhismeedka qaab dhismeedka hawada madax-bannaan iyo bakhaarada madaxa banaan waxay hubisaa howlgalka xasilloon ee qalabka.
● Samee magdhow firfircoon oo dhammaystiran oo ku saabsan awoodda firfircoonaanta ee falcelinta ah iyo awoodda falcelinta ee xayawaanka, oo xalliso dhibaatada saddexda-weji la'aanta isla waqtigaas.
● Xawaaraha jawaabta dhaqdhaqaaqa ee culeyska ayaa ah heerka millisecond, kaas oo gaari kara magdhow firfircoon oo sax ah oo loogu talagalay awoodda falcelinta ee culeyska saameynta.
Codsiyada:
Garsooraha Statitic Vart-ka hore wuxuu ku habboon yahay nidaamka korantada ee korantada, qulqulka iyo warshadaha daaweynta bullaacadda, warshadaha kiimikada, warshadaha kiimikada, warshadaha wax-ka-qabashada, dhuxusha iyo warshadaha wax soo saarka baabuurta, iwm.
Cayayaanka farsamada:
| 220V taxanaha | 380v taxanaha | 500V taxanaha | 690V taxanaha | |||
| Sare | <2000m, oo ka sarreysa 2000m, oo dhalleeceeyso GB / T38599.2 | |||||
| Heerkulka deegaanka | -20 ~ + 50 ℃ | |||||
| Qoyaan qaraabo ah | ≤90%, majiraan uumi-baxa dusha marka heerkulka ugu yar ee ugu hooseeya uu yahay 25 ℃ | |||||
| Heerka wasakhda | Heerka III hoosta | |||||
| Ku shaqeynta korantada | AC220V ± 20% | AC380V ± 20% | AC500V ± 20% | Ac690v ± 20% | ||
| Shaqo soo noqnoqoshada | 50hz ± 5% | |||||
| Awoodda magdhowga ee lagu qiimeeyay | 5kvar | 15/35 / 50/0/35 / 100kvar | 90kvar | 120kvar | ||
| Qaab dhismeedka Grid | L / n | 3p3w / 3p4w | ||||
| Tirada cutubyada ku xiran isbarbar dhig | Dibligshenay | |||||
| Guud ahaan waxtarka mashiinka | ≥97% | |||||
| Inta soo noqnoqda | 32khz | 16khz | 12.8khz | 12.8khz | ||
| Xulashada Shaqada | Awoodda falcelinta | Falcelinta por wr, firfircoon po wer + isu dheelitir la'aan | ||||
| Heerka Magdhawga Awooda Soocelinta | ≥99% | > 95% | ||||
| Waqtiga jawaabta oo buuxda | <10ms | |||||
| Buuq | ≤60db | ≤60db | ≤65db | ≤65db | ||
| Habka Xakamaynta | 2-wado Rs485 Interface (taageerayaasha GPRS / WiFi) | |||||
| Ilaalinta | Xad dhaaf, softiweer / Qalabka isku-dhafka ah, xad-dhaafka girvolcoltage iyo hoos udhac, koronto-daran, korantada, xad-dhaafka ah, difaac aan caadi ahayn, iwm. | Xad dhaaf, softiweer / Qalabka korantada, xad-dhaafka girvolvoltige iyo xad-dhaaf, grigho korantada isku dheelitir la'aanta, koronta korantada, xad-dhaafka ah, si aan caadi ahayn, difaac wareejinta, iwm. | ||||
| Habka rakibaadda | Rack / gidaarka | Xaraf | ||||
| Khadka soo socda | Dib u soo gala (nooca rux), soo gala sare (gidaarka darbiga) | Xariiqda soo gala | ||||
| Heerka Ilaalinta | Ip20 | |||||

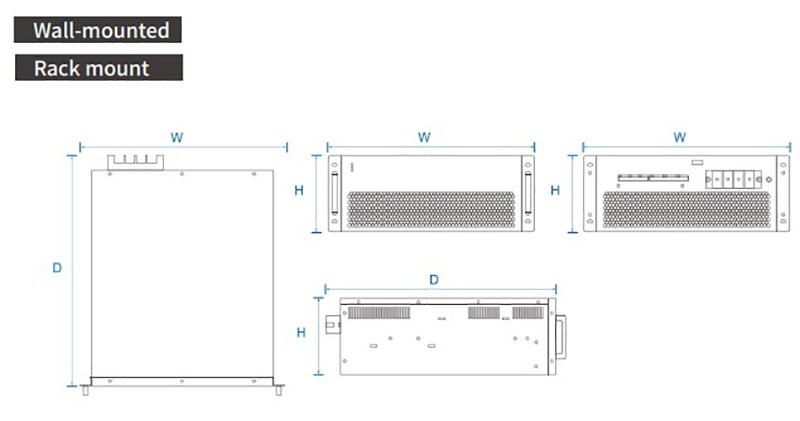

Moodeel & faahfaahin:
| Moodhyada | ||||
|---|---|---|---|---|
| Nambarka moodalka | Awoodda magdhowga (KVar) | Nidaamka Nidaamka (v) | Cabbir (d * w * h) | Habka qaboojinta |
| Gy asvg-0.22-5k / 2l-r / w / w / w | 5 | 220 | 220 * 330 * 160mm | Qaboojinta khasabka ah |
| Gy asvg-0.4-15k / 4l-r / w / w / w / w | 15 | 380 ± 20% | 460 * 520 * 89mm | |
| Gy asvg-0.4-35k / 4l-r / w / w | 35 | 380 ± 20% | 460 * 520 * 89mm | |
| Gy asvg-0.4-50k / 4l-r / w / w | 50 | 380 ± 20% | 500*540*190mm | |
| Gy asvg-0.4-75k / 4l-r / w / w | 75 | 380 ± 20% | 500 * 580 * 240mm | |
| Gy asvg-0.4-100k / 4l-r / w / w | 100 | 380 ± 20% | 500 * 580 * 240mm | |
| Gy asvg-0.5-90k / 4l-r / w / w / w | 90 | 500 ± 20% | 495 * 675 * 275mm | |
| Gy asvg-0.69-120K / 4l-r / w / w / w / w / w | 120 | 690 ± 20% | 495 * 675 * 275mm | |
