Wax soo wadaban
Saddex-weji afarta-silig oo silig ah
Saddexda-wejigaaga afarta-wejiga ee wareega ee Static Static Varter waa xalka ugu sareeya ee khadka tooska ah ee ganacsiyada raadinaya sharciyo korantada hufan iyo sixitaanka awooda awoodda. Guusa oo ah soo saare aad u aamintay, waxaan bixinaa qalab lagu kalsoonaan karo oo loogu talagalay in lagu buuxiyo shuruudaha warshadaha waxqabadka sare leh. Iyada oo matoorkeena 'Static Frenter', waxaad hubin kartaa qaybinta korantada xasilloon, yareynta tamarta tamarta, iyo hagaajinta waxqabadka guud ee nidaamka. Kor u qaad howlgaladaada oo leh tikniyoolajiyaddan goynta goynta maanta!

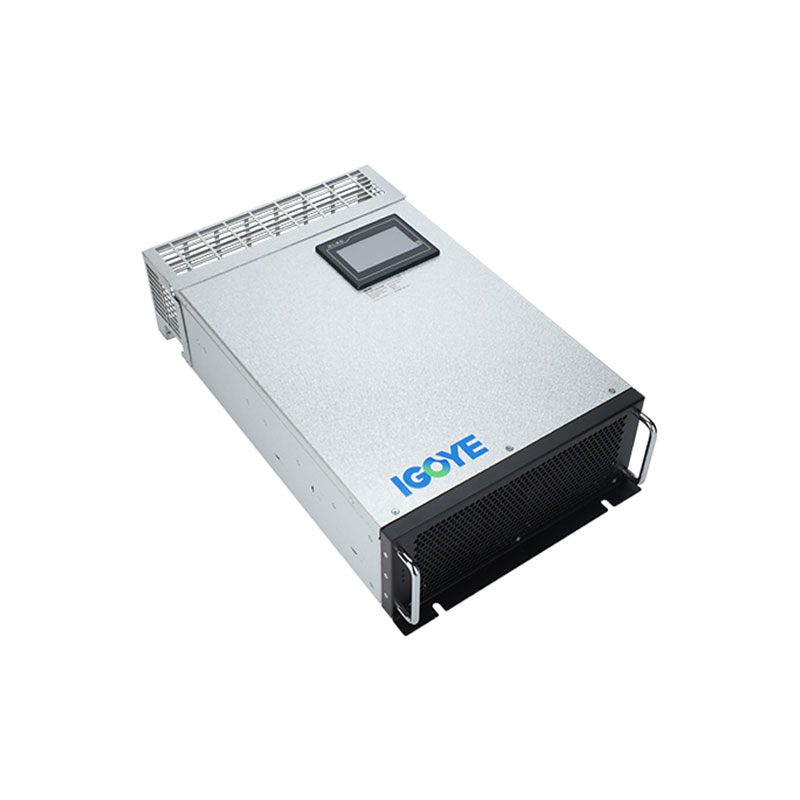

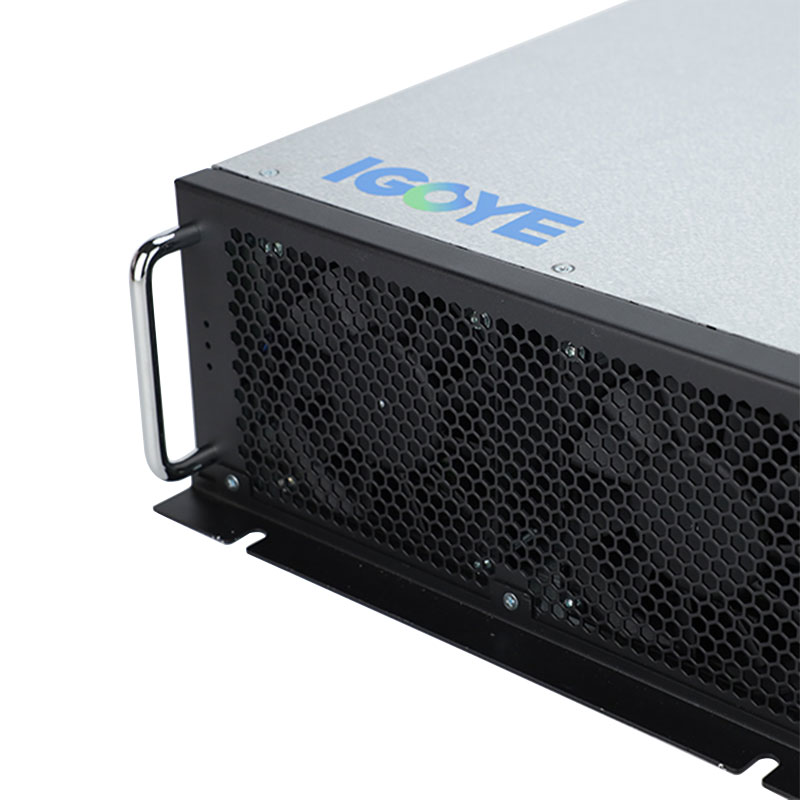

Saddexda-wejiga afarta-silig ee silig ah SVG-da Tani waxay u isticmaashaa DSP + CPLD digital kontoroolka iyo topology saddex-heer ah oo loogu talagalay magdhow sax ah oo deg deg ah, oo lagu gaadhayo waqti jawaab celin buuxda ka yar 10ms. Waxaa loogu talagalay in loo yaqaan 'Standard' ee 19-injirk, qaabeynta buuran ee suufka ah waxay bixisaa xallin wax ku ool ah oo adag. Waxaa lagu heli karaa awoodo kala duwan (15kvar, 35kvar, 50kvar, 75kvar, iyo 100kvar), SVG-gu waxay si wax ku ool ah uga hadleysaa isu dheelitirnaan firfircoon oo ku-meel-gaar ah ee nidaamyada dhexdhexaadka ah.
Tilmaanta Moodeelka:
| Good | Svg | 0.4 | 5000 50 | / | 4l | R |
| Koodh ganacsi | Unic Varter Geters | Heerka korantada 0.22: 220v 0.4: 380v ± 20% 0.5: 500v ± 20% 0.69: 690v ± 20% |
Awoodda (KVar) 5/15/35/50/75 / 100kvar | 4L: Saddex-weji-silig | R: Rack Mount |
Tilmaamaha:
● U adeegso DSP + CPLD XUQUUQDA DHAQANKA GUUD, TALOOYINKA SADDEXAAD SADDEXAAD SADDEXAAD, ISSASHADA KHATARTA ARRIMAHA ARDITE IYO ISKUULADA PWM si loo gaaro magdhow firfircoon oo sax ah oo ah awoodda falcelinta.
● Qaadashada naqshad heer-gabood leh, kaas oo fududeeya isku xirnaanta isbarbar dhiga ee cutubyo badan, waxay qaadataa meel yar oo waa fududahay in la ilaaliyo.
Dejinta qaab dhismeedka qaab dhismeedka hawada madax-bannaan iyo bakhaarada madaxa banaan waxay hubisaa howlgalka xasilloon ee qalabka.
● Samee magdhow firfircoon oo dhammaystiran oo ku saabsan awoodda firfircoonaanta ee falcelinta ah iyo awoodda falcelinta ee xayawaanka, oo xalliso dhibaatada saddexda-weji la'aanta isla waqtigaas.
● Xawaaraha jawaabta dhaqdhaqaaqa ee culeyska ayaa ah heerka millisecond, kaas oo gaari kara magdhow firfircoon oo sax ah oo loogu talagalay awoodda falcelinta ee culeyska saameynta.
Codsiyada:
Saddex-weji afarta-silig oo silig ah
● Magdhowga rarka ah ee aan la isku halleyn karin (saddex-weji):Si wax ku ool ah u magdhabida xamuul aan isdaba joogin oo ku jira nidaam saddex-weji oo xarig ah, oo hubiya korantada deggan iyo yareynta dhexdhexaadnimada hadda jirta.
● Nidaamyada yareynta ee is-waafajinta (nidaamyada silig):Yaraynta dhalanrog is-waafajinta ee nidaamyo afar-silig ah, hagaajinta tayada awoodda iyo ilaalinta qalabka xasaasiga ah.
● Kordhinta korantada ee xarunta xogta:Kordhinta tayada awoodda iyo xasilloonida xarumaha xogta oo leh nidaamyo qaybinta korantada ee wareega.
● Is dhexgalka tamarta la cusbooneysiin karo (afar-silig):Taageerida is-dhexgalka daahsoon ee ilaha tamarta dib loo cusbooneysiin karo ee nidaamyo afar-silig ah, dayactirka xasilloonida iyo tayada awoodda.
Saddex-weji afarta-silig oo silig ah
Cayayaanka farsamada:
| 220V taxanaha | 380v taxanaha | 500V taxanaha | 690V taxanaha | |||
| Sare | <2000m, oo ka sarreysa 2000m, oo dhalleeceeyso GB / T38599.2 | |||||
| Heerkulka deegaanka | -20 ~ + 50 ℃ | |||||
| Qoyaan qaraabo ah | ≤90%, majiraan uumi-baxa dusha marka heerkulka ugu yar ee ugu hooseeya uu yahay 25 ℃ | |||||
| Heerka wasakhda | Heerka III hoosta | |||||
| Ku shaqeynta korantada | AC220V ± 20% | AC380V ± 20% | AC500V ± 20% | Ac690v ± 20% | ||
| Shaqo soo noqnoqoshada | 50hz ± 5% | |||||
| Awoodda magdhowga ee lagu qiimeeyay | 5kvar | 15/35 / 50/0/35 / 100kvar | 90kvar | 120kvar | ||
| Qaab dhismeedka Grid | L / n | 3p3w / 3p4w | ||||
| Tirada cutubyada ku xiran isbarbar dhig | Dibligshenay | |||||
| Guud ahaan waxtarka mashiinka | ≥97% | |||||
| Inta soo noqnoqda | 32khz | 16khz | 12.8khz | 12.8khz | ||
| Xulashada Shaqada | Awoodda falcelinta | Falcelinta por wr, firfircoon po wer + isu dheelitir la'aan | ||||
| Heerka Magdhawga Awooda Soocelinta | ≥99% | > 95% | ||||
| Waqtiga jawaabta oo buuxda | <10ms | |||||
| Buuq | ≤60db | ≤60db | ≤65db | ≤65db | ||
| Habka Xakamaynta | 2-wado Rs485 Interface (taageerayaasha GPRS / WiFi) | |||||
| Ilaalinta | Xad dhaaf, softiweer / Qalabka isku-dhafka ah, xad-dhaafka girvolcoltage iyo hoos udhac, koronto-daran, korantada, xad-dhaafka ah, difaac aan caadi ahayn, iwm. | Xad dhaaf, softiweer / Qalabka korantada, xad-dhaafka girvolvoltige iyo xad-dhaaf, grigho korantada isku dheelitir la'aanta, koronta korantada, xad-dhaafka ah, si aan caadi ahayn, difaac wareejinta, iwm. | ||||

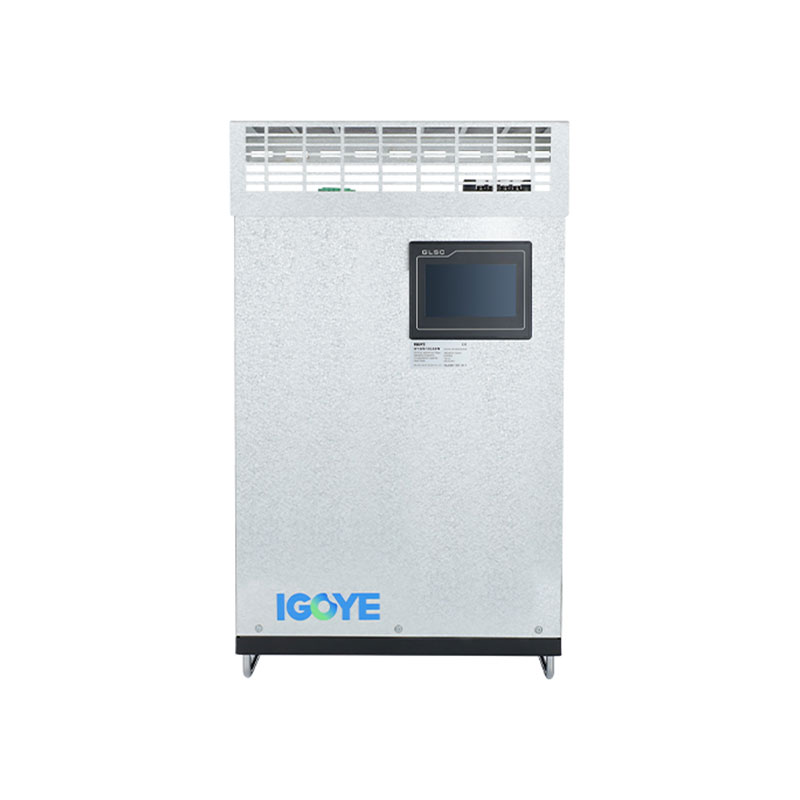

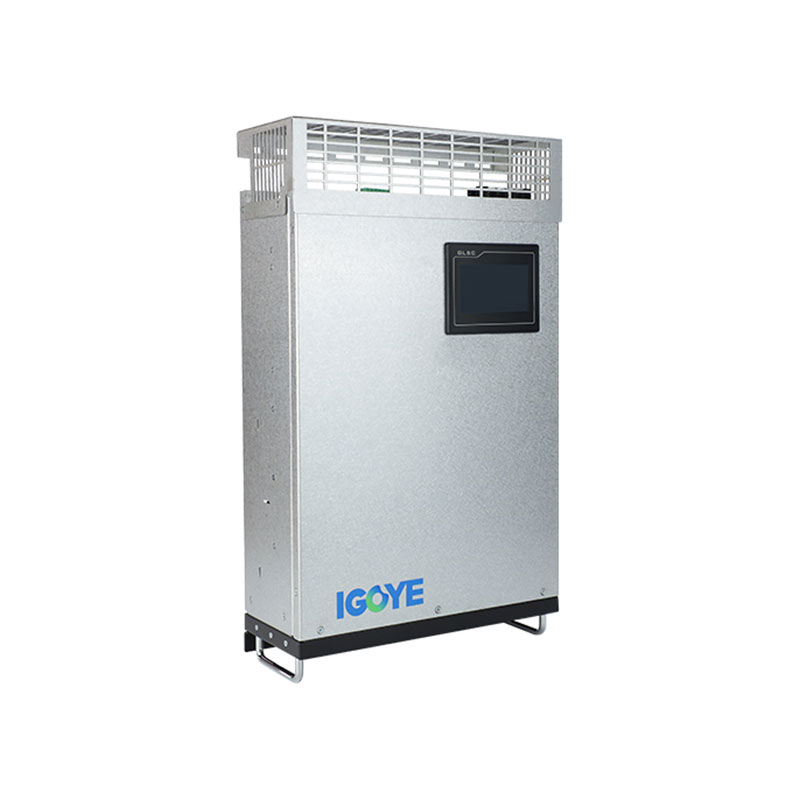

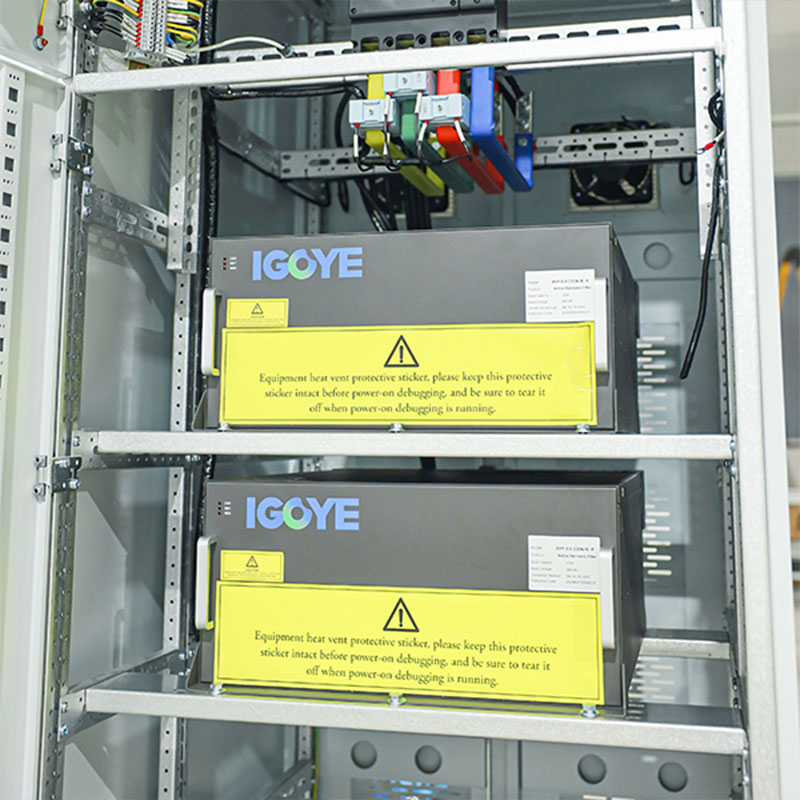

| Habka rakibaadda | Rack / gidaarka | Xaraf | ||||
| Khadka soo socda | Dib u soo gala (nooca rux), soo gala sare (gidaarka darbiga) | Xariiqda soo gala | ||||
| Heerka Ilaalinta | Ip20 | |||||
Moodeel & faahfaahin:
| Moodhyada | ||||
|---|---|---|---|---|
| Nambarka moodalka | Awoodda magdhowga (KVar) | Nidaamka Nidaamka (v) | Cabbir (d * w * h) | Habka qaboojinta |
| Gy svg-0.22-5k / 2l-r / w / w | 5 | 220 | 220 * 330 * 160mm | Qaboojinta khasabka ah |
| Gy svg-0.4-15k / 4l-r / w / w / w / w / w | 15 | 380 ± 20% | 460 * 490 * 89mm | |
| Gy svg-0.4-35k / 4l-r / w / w | 35 | 380 ± 20% | 460 * 490 * 89mm | |
| Gy svg-0.4-50k / 4l-r / w / w | 50 | 380 ± 20% | 500 * 510 * 190mm | |
| Gy svg-0.4-75k / 4l-r / w / w | 75 | 380 ± 20% | 500 * 550 * 240mm | |
| Gy svg-0.4-100k / 4l-r / w / w / w / w | 100 | 380 ± 20% | 500 * 550 * 240mm | |
| Gy svg-0.5-90k / 4l-r / w / w | 90 | 500 ± 20% | 495 * 675 * 275mm | |
| Gy svg-0.69-120K / 4l-r / w / w | 120 | 690 ± 20% | 495 * 675 * 275mm | |
