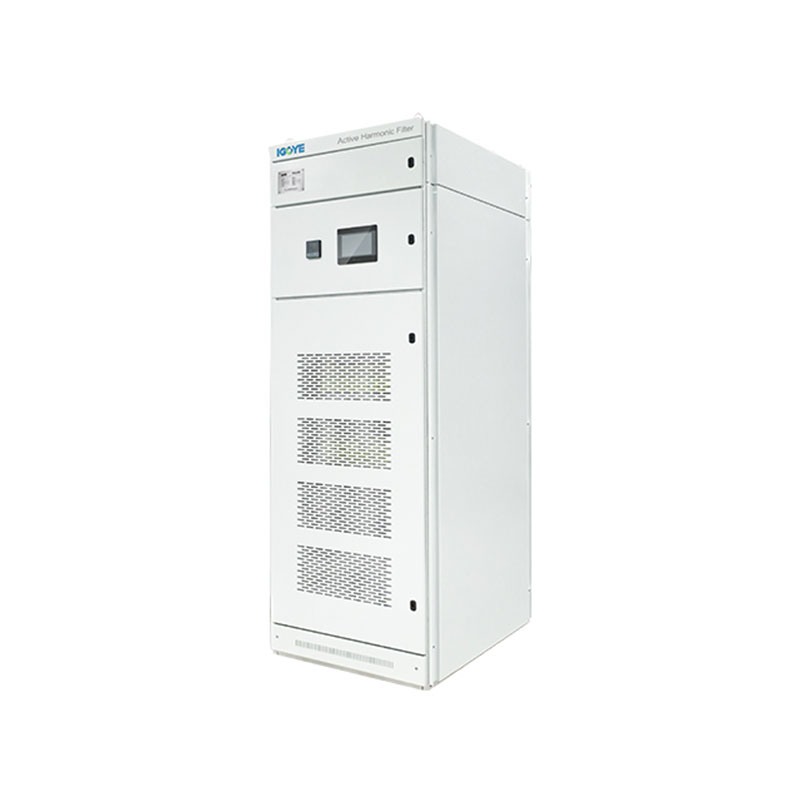

690V nooca golaha-golaha wasiirada-golaha ah ee golaha ah
Guusa waa 690V nooca-golaha-golaha-ka-soo-saarkii Golaha Firfircoon ee Firfircoon oo loo yaqaan 'Chineri' iyo alaab-qeybiye Shiinaha. Waxaa lagu muujiyaa kontaroolka dijitaalka, naqshadda modular & magdhowga illaa iyo inta 50-aad ee laxiriira, saxaa isu dheelitir la'aanta. Ku habboon nidaamyada korantada-dhexdhexaad-dhexdhexaad ah, warshadaha culus, iyo codsiyada badda. Buuxi foomkayaga hadda si aad u hesho xigasho deg deg ah baahiyahaaga iibsashada!

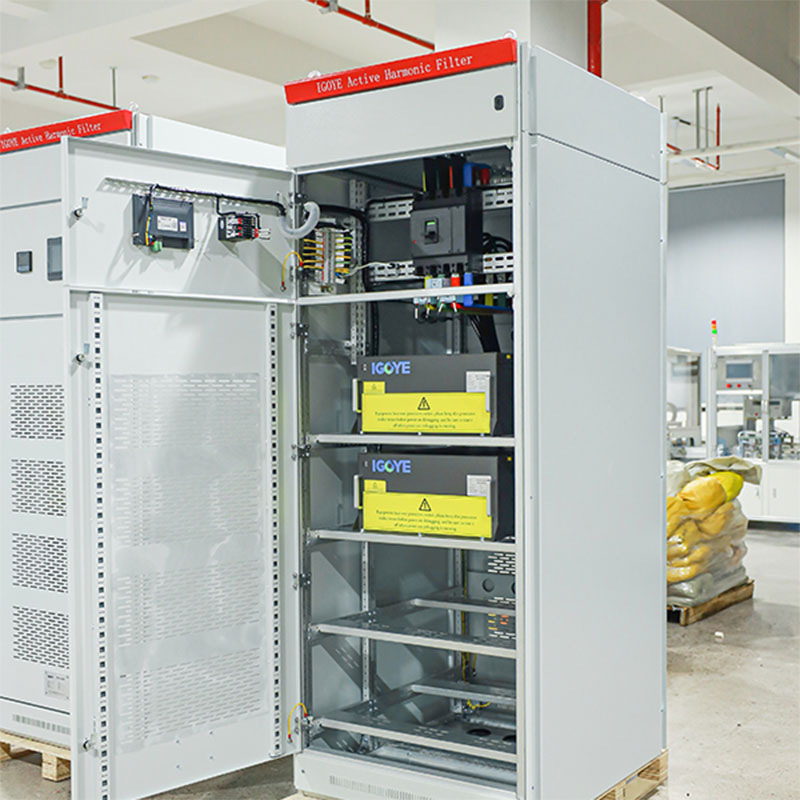

Filter-ka Golaha Hawlaha ee Golaha Wasiirada ah ee Golaha ah (APF) waxay siisaa xallin adag oo loogu talagalay yareynta yareynta yareynta iyo xoojinta tayada korantada ee 690V saddex-were saddex-silig saddex-silig oo afar-silig ah. Xakamaddani waxay u adeegsaneysaa kontoroolka dhijitaalka ah ee Advant + CPLD CPLD Saddex-heer oo ah mid saddex-heer ah oo loogu talagalay magdhowga saxda ah ee loo yaqaan 'hadda la sameeyo magdhowga hadda jira illaa inta 50-ka mar ah ee lagu saxayo isku-darka saddex-wejiyada ah. Naqshadeynta modular waxay taageertaa awoodda la isku karo ee lagu kala baxo iyadoo la oggolaanayo isku xirnaanta isbarbar dhiga qaybo badan. Guri golaha wajahaya ee gaagaaban oo leh tuubooyin hawada madax-bannaan, 690V-golaha-golaha ah ee golaha-qaaradaha firfircoon waxay hubisaa waxqabadka la isku halleyn karo iyo dayactir la fududeeyay. Iyada oo leh qiimeynta hadda jirta ilaa 300ma iyo awoodaha KVAR illaa 300, APF-yadani waxay gaarsiisaa hagaajinta tayada tayada ee waxtarka leh ee 690V.
Tilmaanta Moodeelka:
| Good | Luus | 0.69 | 100a | / | 4l | C |
| Koodh ganacsi | Filterka firfircoon | Heerka korantada 0.69: 690v ± 20% |
Awoodda la qiimeeyay (KVar) 100A | 3l: saddex-weji saddex-silig 4L: Saddex-weji-silig |
C: Golaha wasiirada |
Tilmaamaha:
● U adeegso DSP + CPLD Core RPLD Core Core, oo ah tikniyoolajiyada sare ee topology, oo ah tikniyoolajiyad is-ogaalnimo ee is-ogaalka ah iyo istiraatiijiyadda xakamaynta ee PWM si loo gaaro magdhow sax ah ee is-waafajinta.

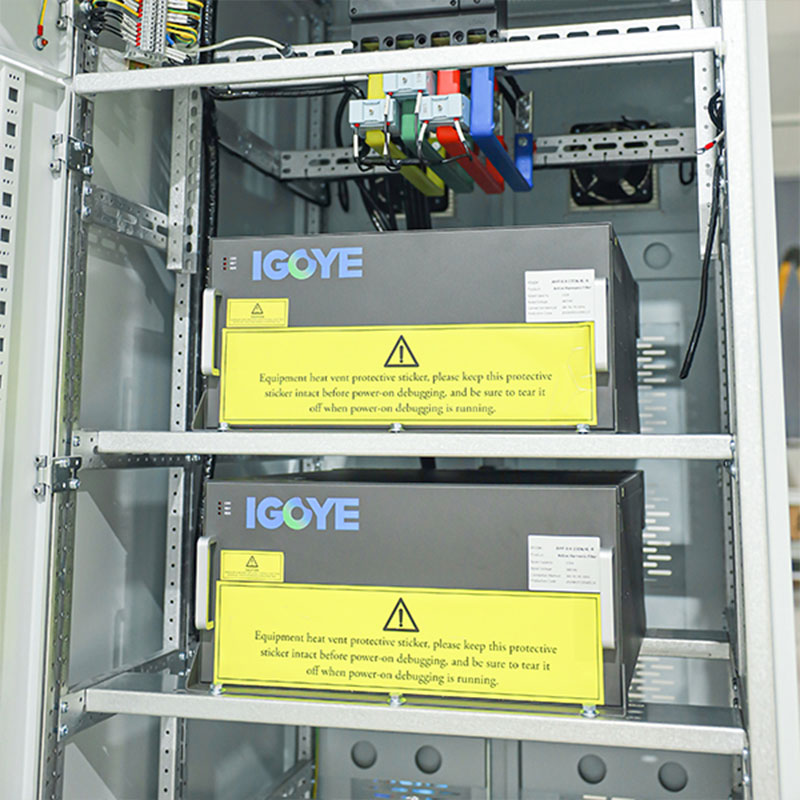

● Qaadashada naqshad heer-gabood leh, kaas oo fududeeya isku xirnaanta isbarbar dhiga ee cutubyo badan, waxay qaadataa meel yar oo waa fududahay in la ilaaliyo.
Dejinta qaab dhismeedka qaab dhismeedka hawada madax-bannaan iyo bakhaarada madaxa banaan waxay hubisaa howlgalka xasilloon ee qalabka.
● Waxay sifeyn kartaa is-afgaranthicis badan oo iswaafajin ah, laga bilaabo 2 illaa 50 iswaafajin, iyo xallinta dhibaatada saddex-waji isku-dheellitirnaan isku mid ah.
● Heerka miisaanka shaandhaynta is-beddelka ayaa sarreeya. Haddii awooddu oggol tahay, heerka shaandhaynta shaandhaynta hadda la is-beddelo wuxuu noqon karaa mid ka sarreeya 95%. Samee 100% wax soo saarka xaddidaadda hadda si loo hubiyo hawlgal muddada fog ah ee qalabka.
Codsiyada:
Kuwa miisaska-firfircoon ee golayaasha ah ee golayaasha ah waxay ku habboon yihiin hagaajinta tayada awoodda ee goobaha warshadaha-korantada ah:
● Nidaamyada korantada-dhexdhexaad-dhexdhexaad ah:Dejinta qaybinta korantada ee shabakadaha 690V, yareynta dhalanrotic is-waafajinta iyo hufnaanta nidaamka hagaajinta.
● Deegaanka Warshadaha culus:Hubinta hawlgalka la isku halleyn karo ee qalabka xasaasiga ah ee warshadaha oo leh xamuul oo la kulma, sida macdanta, saliida iyo gaaska, iyo gaaska, iyo gaaska.
● Wadada gawaarida dhexdhexaadka ah:Yaraynta lacagaha is-waafajinta ee ay ka soo saareen darawal weyn, yareynta dhalanrogyada korantada iyo hagaajinta waxqabadka dhaqdhaqaaqa.
● Badda iyo meelaha xeebta ah:Bixinta tayada korantada xasilloon ee xasilloon ee jawiga adag halkaas oo nidaamyada 690v ay caadi yihiin.
Kuwa miisaska-firfircoon ee golaha-golaha ah ee golayaasha ah waxay bixiyaan xalka waxqabadka sare ee loogu talagalay in lagu saxo tayada awoodda ee dalbanaya 690V codsiyada 690V.
Cayayaanka farsamada:
| 220V taxanaha | 380v taxanaha | 500V taxanaha | 690V taxanaha | ||
| Sare | <2000m, oo ka sarreysa 2000m, oo dhalleeceeyso GB / T38599.2 | ||||
| Heerkulka deegaanka | -20 ~ + 50 ℃ | ||||
| Qoyaan qaraabo ah | ≤90%, majiraan uumi-baxa dusha marka heerkulka ugu yar ee ugu hooseeya uu yahay 25 ℃ | ||||
| Heerka wasakhda | Heerka III hoosta | ||||
| Ku shaqeynta korantada | AC220V ± 20% | AC380V ± 20% | AC500V ± 20% | Ac690v ± 20% | |
| Shaqo soo noqnoqoshada | 50hz ± 5% | ||||
| Magdhow hadda | 25a | 25/50/75/100 / 150a | 100a | 100a | |
| Qaab dhismeedka Grid | L / n | 3p3w / 3p4w | 3p3w / 3p4w | 3p3w / 3p4w | |
| Tirada cutubyada ku xidhan isbarbar dhig |
Dibligshenay | ||||
| Guud ahaan waxtarka mashiinka | ≥97% | ||||
| Qaab dhismeedka Grid | 32khz | 16khz | 12.8khz | 12.8khz | |
| Baaxadda magdhowga | 2 ~ 50 jeer, heerka magdhow hal magdhow ayaa la hagaajin karaa | ||||
| Xulashada Shaqada | Awoodda falcelinta | Awoodda falcelinta, awoodda falcelinta + asymmetry | |||
| Awoodda falcelinta Heerka Magdhowga |
≥95% | > 92% | |||
| Shaandhaynta dhexdhexaadnimada awood |
Awoodda shaandhaynta xariiqda dhexdhexaad ah waa 3 jeer oo ah awoodda shaandhaynta wejiga | ||||
| Waqtiga jawaabta oo buuxda | <10ms | 40ms | 40ms | 40ms | |
| Buuq | ≤60db | ≤60db | ≤65db | ≤65db | |
| Habka Xakamaynta | 2-wado Rs485 Interface (taageerayaasha GPRS / WiFi) | ||||
| Ilaalinta | Xad dhaaf, softiweer / Qalabka isku-dhafka ah, xad-dhaafka girvolcoltage iyo hoos udhac, koronto-daran, korantada, xad-dhaafka ah, difaac aan caadi ahayn, iwm. | Culeys, softiweer / qalabka korka, xad-dhaafka wadnaha, grigolvoltige, isbarbardhiga korantada, korodhka korantada, xad-dhaafka korantada, si aan caadi ahayn, difaac wareejinta wareega, iwm. | |||
| Habka rakibaadda | Rack / gidaarka | Xaraf | |||
| Khadka soo socda | Dib u soo gala (nooca rux), soo gala sare (gidaarka darbiga) | Xariiqda soo gala | |||
| Heerka Ilaalinta | Ip20 | ||||
Moodeel & faahfaahin:
| Moodada Aaladda Golaha wasiirada | ||||
|---|---|---|---|---|
| Nambarka moodalka | Awoodda magdhowga (KVar) | Nidaamka Nidaamka (v) | Cabbir (d * w * h) | Habka qaboojinta |
| Gy apf-0.4-100a / 4l-c | 100 | 380 ± 20% | 800 * 1000 * 2200mm | Qaboojinta khasabka ah |
| Gy apf-0.4-150a / 4l-c | 150 | 380 ± 20% | 800 * 1000 * 2200mm | |
| Gy apf-0.4-200a / 4l-c | 200 | 380 ± 20% | 800 * 1000 * 2200mm | |
| Gy apf-0.4-250a / 4l-c | 250 | 380 ± 20% | 800 * 1000 * 2200mm | |
| Gy apf-0.4-300a / 4l-c | 300 | 380 ± 20% | 800 * 1000 * 2200mm | |
| Gy apf-0.4-400a / 4l-c | 400 | 380 ± 20% | 800 * 1000 * 2200mm | |
| Gy apf-0.5-300a / 4l-c | 300 | 500 ± 20% | 800 * 1000 * 2200mm | |
| Gy apf-0.69-300a / 4l-c | 300 | 690 ± 20% | 800 * 1000 * 2200mm | |
